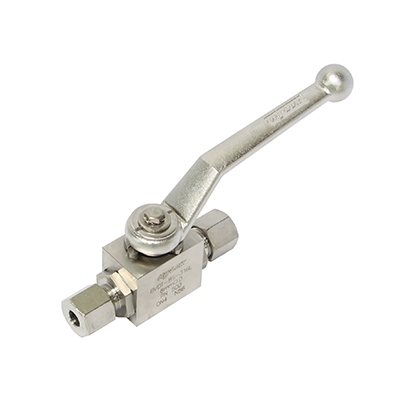

115 Series Ball Valve
Hy-Lok 115 Series Ball Valve, 16S POM Seat, NBR Seal
- Part No. : VBVDT-16S
- End 1 Size : 16S
- End 1 Type : DIN 2353 Tube Fitting
- End 2 Size : 16S
- End 2 Type : DIN 2353 Tube Fitting
- Max. Temperature : 121℃
- Pressure Rating : 500bar
- Seal Material : NBR
- Seat Material : POM
Hy-Lok 115 Series ball valve can be used for High Pressure and designed according to DIN Standard. It has been designed as compact type and can be used up to max 500bar. The orifice is designed for minimum pressure drop and It can be available from DN4 to DN25 But DN80 is also available if requested. The end connection can be available as Male & Female, DIN/ ISO/ BSP and NPT. Applications: • Hydraulic • Railway Industry • Fuel Oil system • Lubrication • Air & Gas Compressors Features • Available Fire safety designed to API 607, BS 6755 Part 2 • According to DIN standard • High Pressure range (up to 500bar) • Full bore design • Available locking device • Variety of End Connection - DIN 2353 "L" & "S" Series Male & Female (DIN / ISO / BSP & NPT)
