102 Series Ball Valve

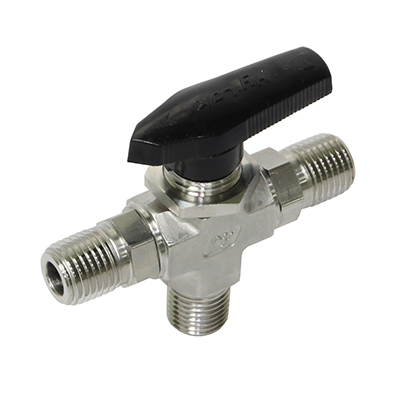

Hy-Lok 102 Series Forged High Pressure 3-Way Ball Valve, 1/8" Male NPT, PCTFE Seat, PTFE Seal

Part No. : VHB1B3M-2N
End 1 Size : 1/8"
End 1 Type : Male NPT
End 2 Size : 1/8"
End 2 Type : Male NPT
End 3 Size : 1/8"
End 3 Type : Male NPT
Max. Temperature : 148℃
Pressure Rating : 6,000psig
Seal Material : PTFE
Seat Material : PCTFE

Product Description

Hy-Lok 102 Series Ball Valves are available manually, pneumatically, and electrically actuated. They provide quick on-off control of fluids utilized in process and instrumentation applications. A broad selection of valve body, seat, and seal materials provide a wide range of pressures and temperatures at which the valve may be used. Applications • High pressure Instrument Lines • Remote Shut Off with Actuation • Flow Diversion/Selection Features • 2-way or 3-way designs • Stainless Steel, Brass, Alloy 400(Monel), A105 • PEEK or PCTFE seats • Easy replacement of ball seats Specifications • Maximum Operating Pressure : 6000 psig(420 barg) @ 100℉(38℃) • Operating Temperature Range : PEEK Seat : -65℉(-54℃) to 450℉(233℃) PCTFE Seat : -65℉(-54℃) to 300℉(148℃)

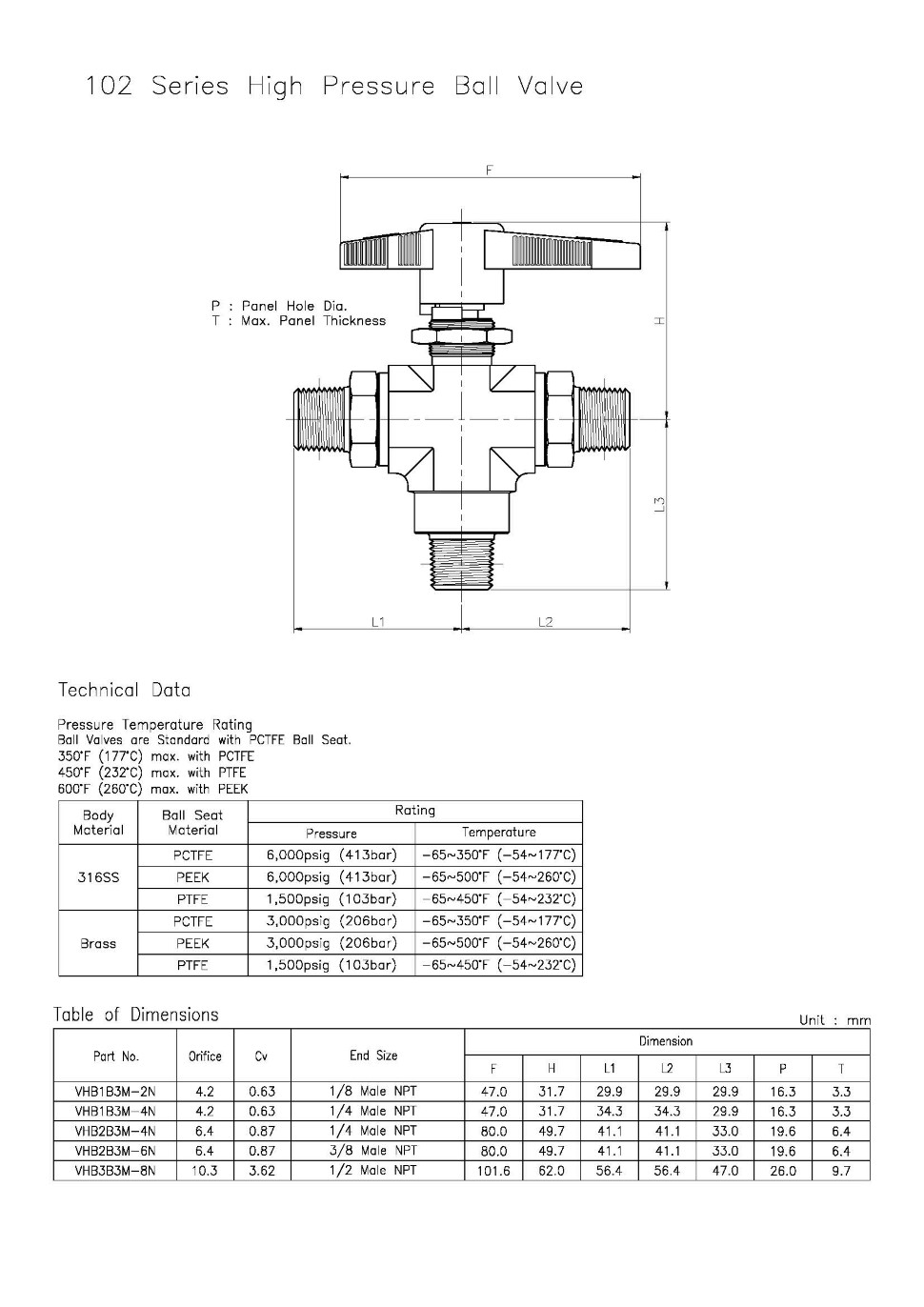

Dimension Drawing
